Application

Argon gas is the most accessible and cheapest Rare inert gas. Due to its high density, low Thermal conductivity, stable physical and chemical characteristics, Argon gas is widely used in science research, Metallurgy, Electronic, Illumination, Chemical industry, Atomic energy and National defense. Especially, high purity Argon gas is needed in Spectrometer, gas chromatograph, semiconductor manufacturing process, Special bulb and Rare processing, etc.

Introduction

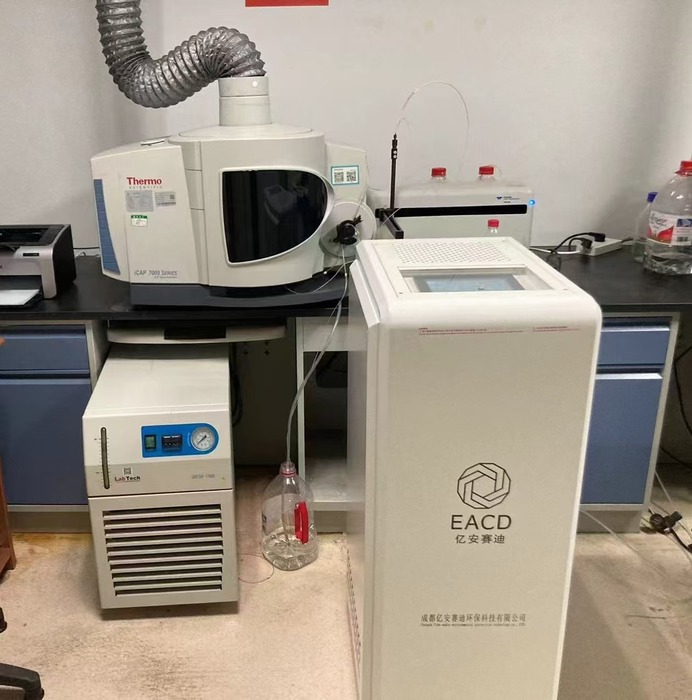

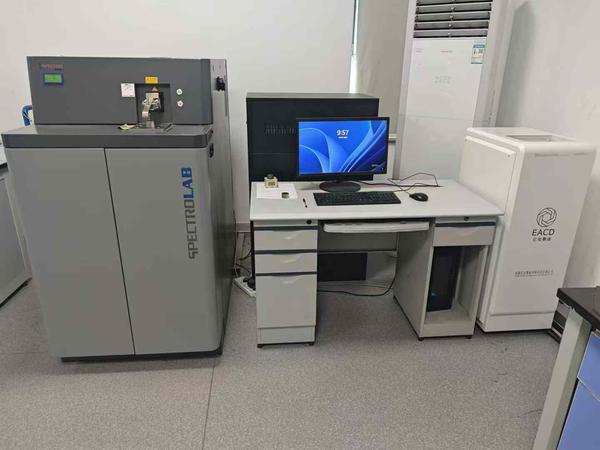

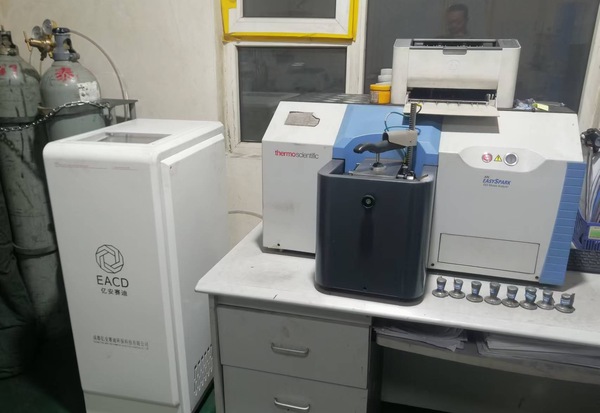

Yeada Argon Gas Purifier, ordinary Argon gas can be purified to high purity Argon gas(99.9999%). The purifier mainly provides high purity Argon gas for Direct Reading Spectrometer, ICP, mass spectrometer, Chromatogram(gas phase/liquid phase), Melting furnace with argon blowing system, protection gas in silicon industry, high purity purging, etc.

Features

1、User friendly design, small volume, light weight, simple installation and operation, energy saving;
2、 High purity, Y series adopts high-tech Synthesis reactor as Core component, uses imported high-grade Precious Metal material and nanoscale adsorption technology to replace traditional tower structure. This is a revolution in Argon Purification.
3、 Excellent denitrogenate effect, Synthesis reactor adopts multistage purification method including solid state filter, chemical catalytic reaction, etc. Argon purity can reach 99.9999%(nitrogen content ＜0.1 ppm)
4、   Synthesis reactor can be regenerated repeatedly, One-button operation, during regeneration, high purity Argon gas can be output as normal, without adding hydrogen and shutdown, the process is safe and reliable.
5、   Argon input, output ports are installed with powder filter(powder diameter ＜0.3μm).
6、Use high quality imported stainless steel pipeline and valve fittings (inner and outer surfaces are electrochemical polished) to ensure high quality, high purity Argon gas output.
7、   Various kinds of conversion adapters are optional, support various kinds of Spectrometer at home and aboard.
8、 Low failure rate, Electrical parts all endure long time aging test.

Purity (%)

N2   (ppm)

O2   (ppm)

CO (ppm)

CO2(ppm)

CH4(ppm)

Dew Point (H2O)

Ordinary Argon gas

99.9

＜106

＜15

＜5

＜5

＜5

-65℃

High Purity Argon Gas

99.9999

≤0.1

≤0.1

≤0.1

≤0.1

≤0.1

-85℃
